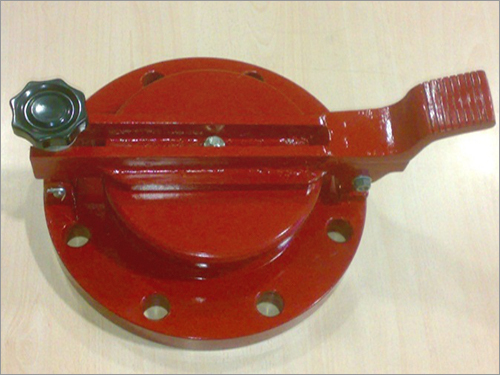

Gauge Hatch

Gauge Hatch
Gauge Hatch
Product Code : PFCI - GH - 2052
Product Specifications
  • Application
  • Oil Refineries, Petro Chemical Plants, Pharmaceutical Manufacture, Chemical Processing, Mechanical Engineering, Pulp And Paper Industry
Trade Information
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Tank Gauge Hatch Cover

The PRECON Model No: PFCI/GH/2052 Gauge Hatch Cover, Tank Gauge Hatch Cover offers a simple and easy access in to the vapor space of bulk storage tanks. It is opened by a foot, it leaves the operator hands free to dip the tanks contents for depth, take product samples and obtain temperature measurements.

The Gauge Hatch Cover, Tank Gauge Hatch Cover is bolted to a tank roof flange. The unit is made of Aluminium as a standard and has seating surface (Seal) of PTFE Diaphragm. The paddle is designed with serrated surface to avoid foot slippage while operating.

Special Features of Gauge Hatch :-

  • Spark proof construction
  • Sizes available from 3” NB to 12”NB
  • Also available in different material of construction
  • Designed to minimize vapor losses from low pressure tanks.
  • Hinged cover is normally self-closing or Foot operated.

Technical Details of Gauge Hatch Cover :-

TABLE – 1 SELECTION OF MATERIAL


DESCRIPTION

A

B

C

D

Body

Cast Aluminium

CS

SS304

SS316

Cover

Cast Aluminium

ASTM A 36/IS 2062

SS 304

SS 316

Paddle

Cast Aluminium

IS 2062

SS304

SS316

Seating

PTFE backed by rubber

PTFE backed by rubber

PTFE backed by rubber

PTFE backed by rubber

Hinge Pin

SS 304

SS 304

SS 304

SS 316

Size

80 mm

100 mm

150 mm

200 mm

250 mm

300 mm

Higher size available on request.

End connection

BS 10 Table D,E,F

BS

DIN PN 6, PN 10, PN 16

DIN

ANSI 150 FF/RF, 300 RF

ANSI
