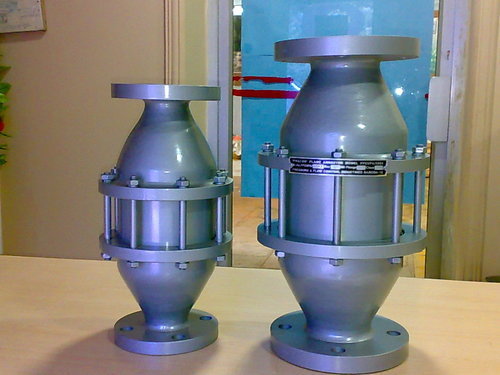

End of Line Deflagration Flame Arrester

End of Line Deflagration Flame Arrester
End of Line Deflagration Flame Arrester
Product Code : 20501
Trade Information
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Type Approved in accordance with ATEX Directives and EN ISO 16852

The PRECON 20501 End-of-line deflagration flame arrester provides protection against flame transmission through atmospheric deflagration. The device is commonly installed on atmospheric storage tank, Vent lines of process vessels and process engineering apparatus, transport containers which are not pressurized. so typically it is installed on vent lines which discharge vapour for a short time period only. The device prevents flame transmission from atmospheric deflagration into the vessel or plant. The design can be used with operating temperature range up to + 60°C. Devices with special approval can be obtained for higher temperatures upon request.Type-approved in accordance with the ATEX Directive and EN ISO 16852 for IIB3/IIC.

 Special Features and Advantages :-

  • Sizes available from 1/2" NB to 24" NB
  • Easy maintenance.
  • Low Pressure drop.
  • Available for High operating temperatures (Refer Model No: 20504)
  • Protection against atmospheric deflagration.
  • Low operating and lifecycle cost.
  • Cost effective device.
  • Easily replaceable and Cost effective spare parts.
  • Weather hood provides protection against environmental impact (harsh weather conditions, bird nests, etc.)

Technical details of Deflagration Type Flame Arresters :-

Selection of Material :-
  • Description

    A

    B

    C

    D

    Body

    BS 1490 Gr LM 6

    CS/A 216 Gr WCB

    A 351 Gr CF8/SS304

    A 351 Gr CF8M/SS316

    Shell

    A106 Gr B

    A 106 Gr B

    SS 304

    SS 316

    Flame Element

    SS 316/SS 316L

    SS 316/SS 316L

    SS316/SS 316L

    SS316/SS 316L

    Gasket

    NAM 39

    NAM 39

    PTFE

    PTFE

    Fastners

    C/S zinc plated

    C/S zinc plated

    SS 304

    SS 304

    Group


    MESG

     Group ( IEC)

    >0.9 mm

    IIA

     0.65 mm

    IIB3

    <0.5 mm

    IIC

    Size

    15 mm to 600 mm

End connection


BS 10 Table D,E,F

BS

DIN PN 6, PN 10, PN 16

DIN

ANSI 150 FF/RF, 300 RF

ANSI

DETAIL OF ATEX CERTIFICATE


 Group

ATEX Certificate

Number

15 mm to 600 mm IBExU16ATEX2082 X
15 mm to 300 mm IBExU16ATEX2083 X
