Home » Products » Emergency Pressure Relief Valves » Emergency Pressure Relief Valve - Hinged Operated

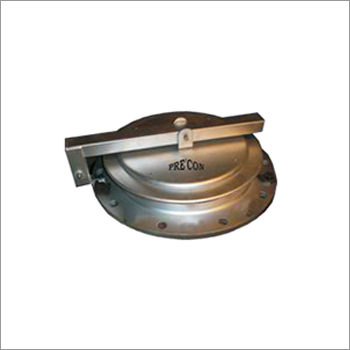

Emergency Pressure Relief Valve - Hinged Operated

Emergency Pressure Relief Valve - Hinged Operated
Emergency Pressure Relief Valve - Hinged Operated
Product Code : PFCI-EPRV-2051
Product Specifications
  • Type
  • WEIGHT LOADED
  • Pressure
  • Low Pressure
  • Media
  • Gas
  • Port Size
  • 150 TO 750 MM
Trade Information
  • Price
  • Minimum Order Quantity
  • 2 Pieces
  • Price Range
  • 65000 - 250000
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 4 Week
  • Packaging Details
  • WOODEN BOX
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Pressure Relief Valve Hinged Operate

In addition to the normal vent capacity requirement by the PV valve / Flame Arrester. All large above ground storage tanks needs emergency Pressure relief caused due to fire in adjoining area. These relief requirements are recommended to be considered by making provision of Emergency Pressure Relief Valve as per API 2000 standard.

When fire occurs near the storage tank which is having flammable liquid the heat is transmitted through the tank walls causing to vaporize more quickly this condition create a relatively high pressure within the tanks vapor space in the absence of required emergency relief a blast could occur.

Function and Description :-

The PRECON Model No: PFCI/EPRV/2051 valve is a pressure relief valve for applications in which a high flow capacity is required. It is primarily used as an emergency pressure relief valve on silos, Process vessels and equipment, storage tanks etc, it offers reliable protection against excessive overpressure and prevents excessive product loss at pressures close to the set pressure. This emergency vent valves are weight loaded, Spring loaded, Hinged type etc, which provides tight seal under normal conditions and open only when the set pressure is attained and release the excessive volume of vapour generated by above condition.

Features & Benefits :-

• Emergency Pressure relief valves provide high flow capacity.

• Wide range of pressure settings to provide maximum tank protection while ensuring minimum gas loss.

• Designed and manufactured to API 2000 / ISO 28300.

• Seat leakage requirements of API 2000/ ISO 28300.

• Low leakage rate.

• Economic savings due to reduced product loss.

• Alternative connection types available on request.

• Valve sizing service assists optimum valve performance / cost specification.

Attributes of Hinged Operated Pressure Relief Valve :-

• Designed and tested according to API2000.

• Sizes available from 6”NB to 30” NB.

• Vented to atmosphere.

• Modular construction.

• The inlet flanges are in accordance with ASME B16.5 150LB RF. Others on request

• PTFE/FEP diaphragms effectively prevent the seat and pallet from sticking.

Technical Details of Pressure Relief Hinged Operated Valve :-

TABLE – 1 SELECTION OF MATERIAL


DESCRIPTION

A

B

C

D

Body

Cast Aluminium

CS

SS 304

SS 316

Diaphragm

PTFE

PTFE

PTFE

PTFE

Pallet

SS 304

SS 304

SS 304

SS 316

Diaphragm retainer

SS 304

SS 304

SS 304

SS 316

Hinge

Aluminium/CS

CS

SS 304

SS 316

Hinge Pin

SS 304

SS 304

SS 304

SS 316

Any special materials like ECTFE Lining, FRP coating, Hast alloy upon request.

Size

150 mm

200 mm

250 mm

300 mm

350 mm

400/450 mm

500/550 mm

600 mm

700 mm

750 mm

Accuracy : + 3% above 20 mbar

Settings for Weight Loaded Design

Pressure : > 35 mbar to 70 m bar

350 mm Wc to 700 mm Wc
